VSHOW Led Hybrid Moving Head S712 450W 3IN1 Led Light With CMY CTO

S712 is a 3-in-1 computer moving head light, featuring a single 450W LED light engine that integrates beam, pattern, and coloring in one unit. It is energy-efficient, with an extended lifespan, rapid heat dissipation, powerful functionality, and easy control.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Power consumption

480W

Power supply

600W

Light source

450W module LED engine

Place of Original

Guangdong, China

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The fixed and rotating pattern discs, under the zoom lens, can project pattern effects from multiple angles. The beam angle can be adjusted through the zoom lens for enhanced flexibility. With the addition of a bi-directional rotating eight-prism, a six-row prism, double prism stacking, independent atomization effects, and electric focus, coupled with a linear CMY color mixing system, it provides rich and saturated light colors.

This is a high-performance moving head pattern light, meeting various coloring needs for different occasions. It is well-suited for entertainment venues such as bars, dance halls, nightclubs, and performances.

Parameters

Input Voltage	100-240V, 50/60Hz	Output Voltage	V1:48V:(LED driver) V2:36V(Master board), V2:12V(cooling fan+Display)
Power supply	600W	Light source	450W module LED engine
Power consumption	480W	LED temperature	9000K
CRI	Standard:70CRI high :90CRI	Dimming	0-100% 16bit linear smooth dimming
CMY	Linear CMY color mixing	CTO	8500K-2800K
Diamter of optic lens	148mm	Zoom angle	3-50°
Lifetime	≥20,000Hours	Color wheel	1 color wheel, 7fixed colors plus white
Static gobo	12 gobos plus 1 white circle	Rotation Gobo	7 Gobo plus 1 white circle
Prism	Equipped with 8 prism, and 6 rows prism, the two prisms can be stacked and rotated in both	Frost	with smooth wash effect
Control panel	LCD Touch screen Overheating self-energy protection LED, extending LED life	Signal socket	Standard 3 PIN XLR /5PIN XLR socket
DMX Channel	29CH	Operate mode	DMX512, Auto, master/slave, RDM
Net Weight	20.4kg	Gross Weight	23kg

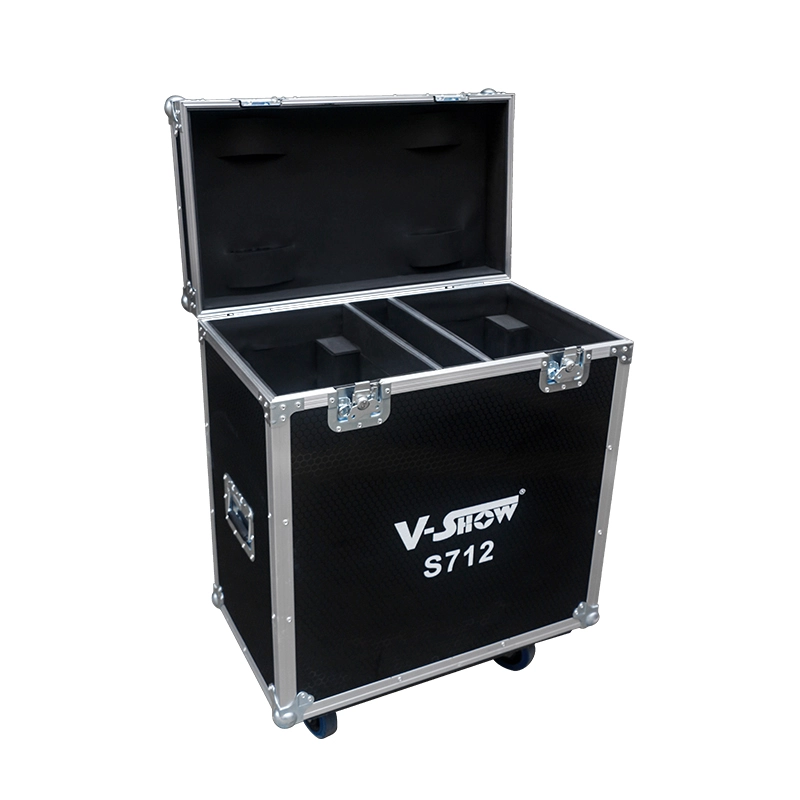

Fixture size	338254621mm	Package size	733441cm/23kg (Carton) 724284cm 66KG (Flight case 2 in 1）

Details & Features

Excellent color mixing effect

• can be stacked and rotated in both

• CMY color macro function

• Linear CMY color mixing

Download

S712 USER MANUAL

DOWNLOAD

S712 DWG

DOWNLOAD

S712 MA

DOWNLOAD

S712 D4

DOWNLOAD
