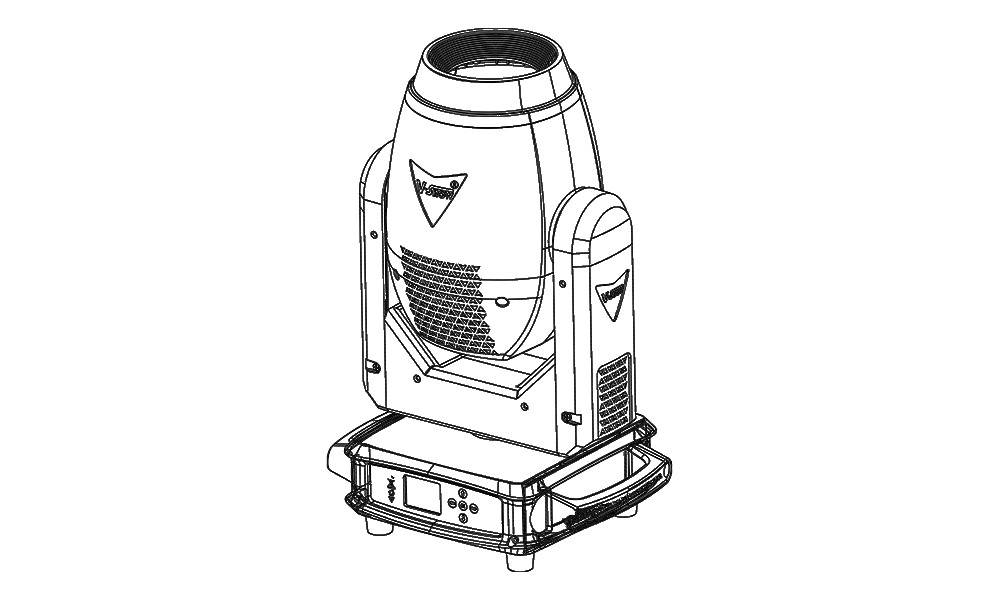

VSHOW Spot Moving Head Light S716 200W 3IN1 Led Beam Wash Light

The VSHOW S716 Goku is a 200W LED moving head light that can be used as a spot light, wash light, or beam light. This versatility makes it a great choice for a variety of stage lighting applications, from concerts and nightclubs to theaters and houses of worship. The S716 Goku features a bright LED source, a zoom range of 6-35 degrees, and a wide variety of effects, including gobos, prisms, and frost filters. It can be controlled via DMX512, standalone, master/slave, or RDM. With its compact size and lightweight design, the S716 Goku is easy to transport and set up.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Output Voltage

V1:36V(Motor board+LED driver), V2:12V(cooling fan+Display)

Power consumption

220W

Power supply

300W

Light source

200W Osram Luxury LED chip(21-24V

Place of Original

Guangdong, China

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The fixed and rotating pattern discs, under the zoom lens, project pattern effects from multiple angles. The beam angle can be adjusted through the zoom lens, and with the addition of a bi-directional rotating three-prism, the beam becomes even more flexible and versatile. Energy-efficient, with an extended lifespan, rapid heat dissipation, powerful functionality, and easy control, it significantly improves the performance environment, reducing maintenance and operational costs. It comprehensively meets various performance requirements, providing a versatile solution for a wide range of shows.

Parameters

Input Voltage	100-240V, 50/60Hz	Output Voltage	V1:36V (LED driver), V2:12V(cooling fan+Display)	Power consumption	220W
Power supply	300W	Light source	200W Osram Luxury LED chip (21-24V, 8A)	Color temperature	8000K
Diamter of optic lens	97mm	Zoom angle	3-45°	Color wheel	7 colors plus white
Static gobo	8 gobos plus 1 white circle	Rotation Gobo	7 Gobo plus 1 white circle	Prism	3 prisms,can be rotated in both directions
Frost filter	with smooth wash effect	Focus	Electric focusing system	DMX Channel	20CH
Operate mode	DMX512, self-propelled, master/slave, RDM

Details & Features

Excellent color mixing effect

Moving light dj

Dj lighting stands

Moving heads dj lights

Led lights effect

Lightning led

Dj laser light

Led light and stand

Dj wash lights

Download

S716PDF

S716 Goku

USER MANUAL
