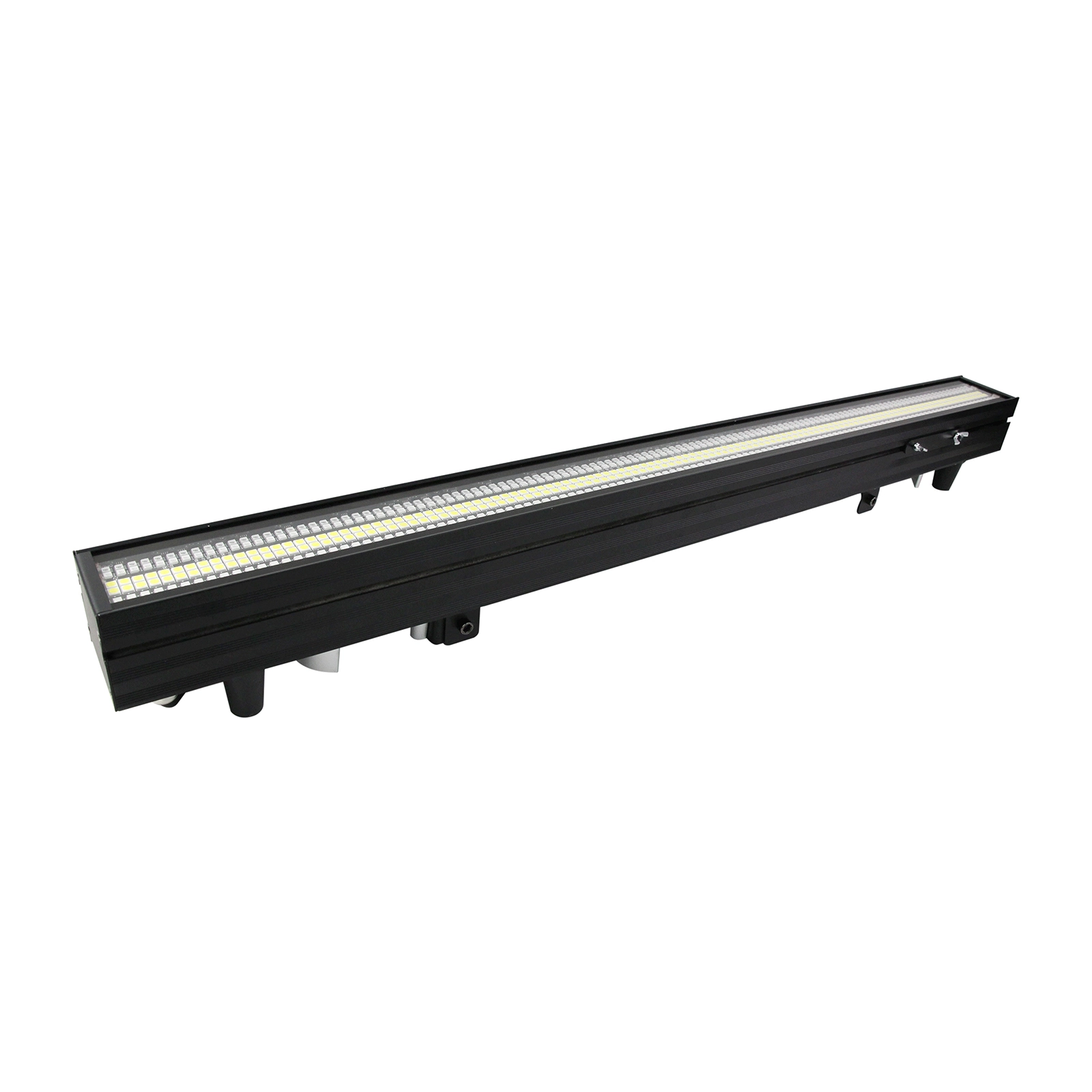

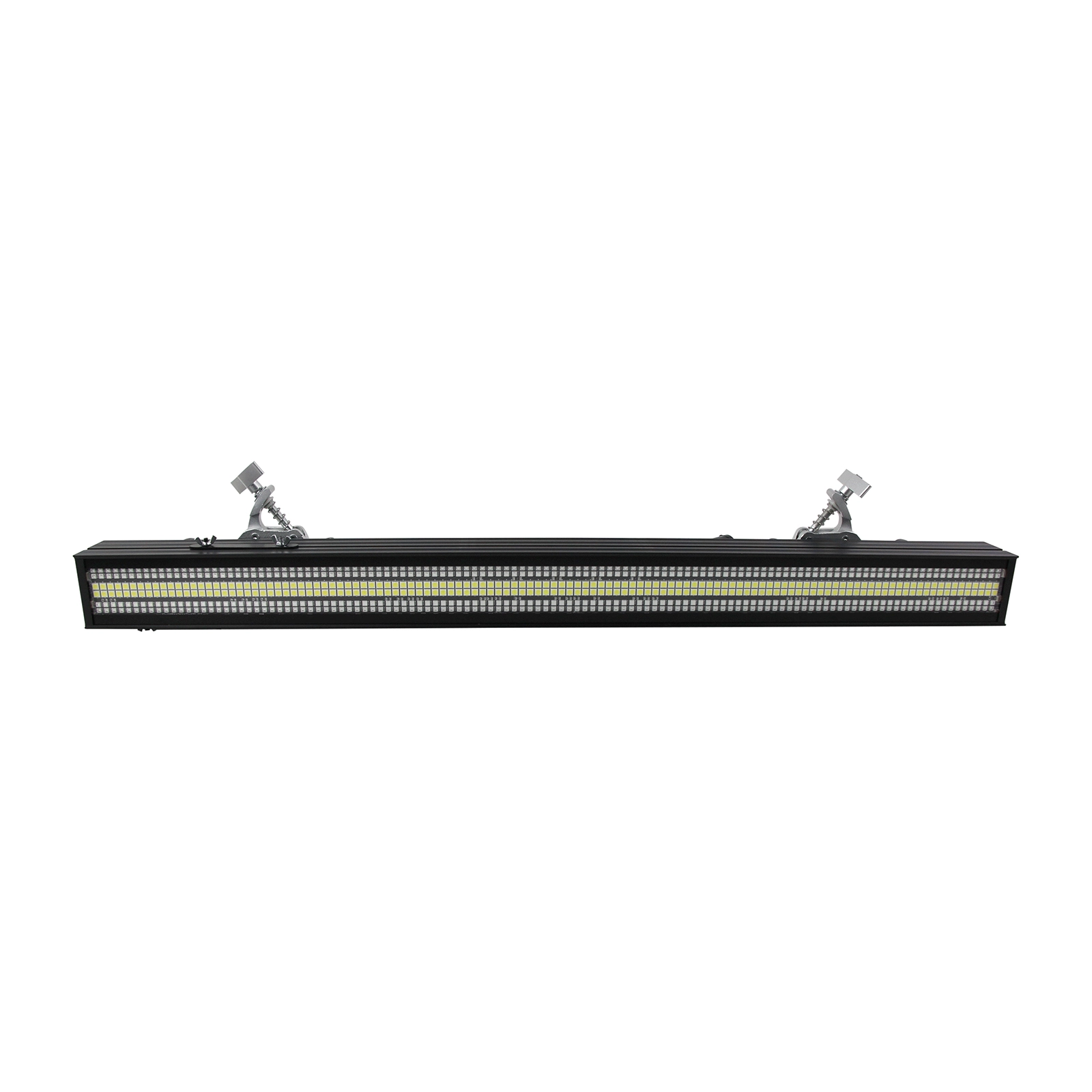

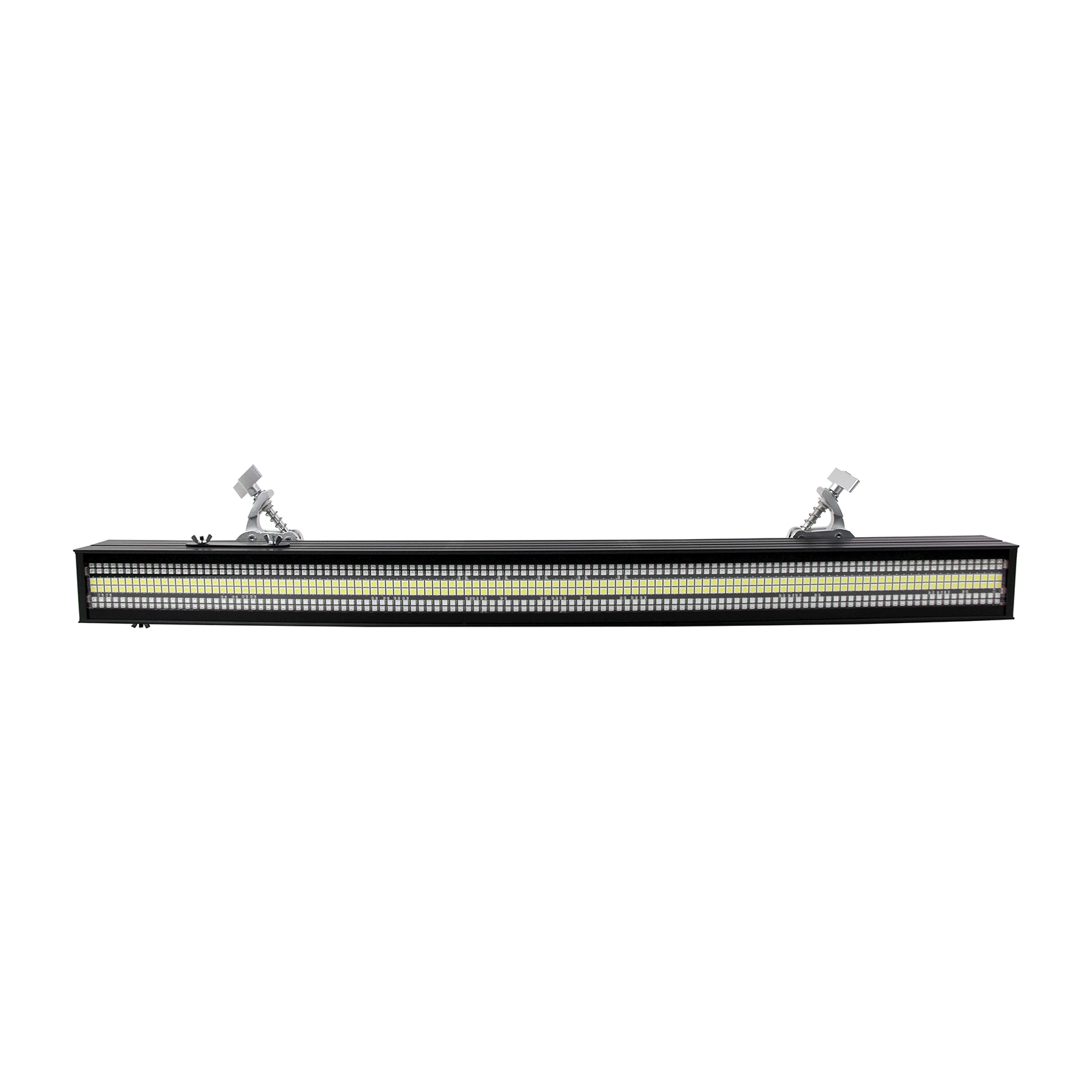

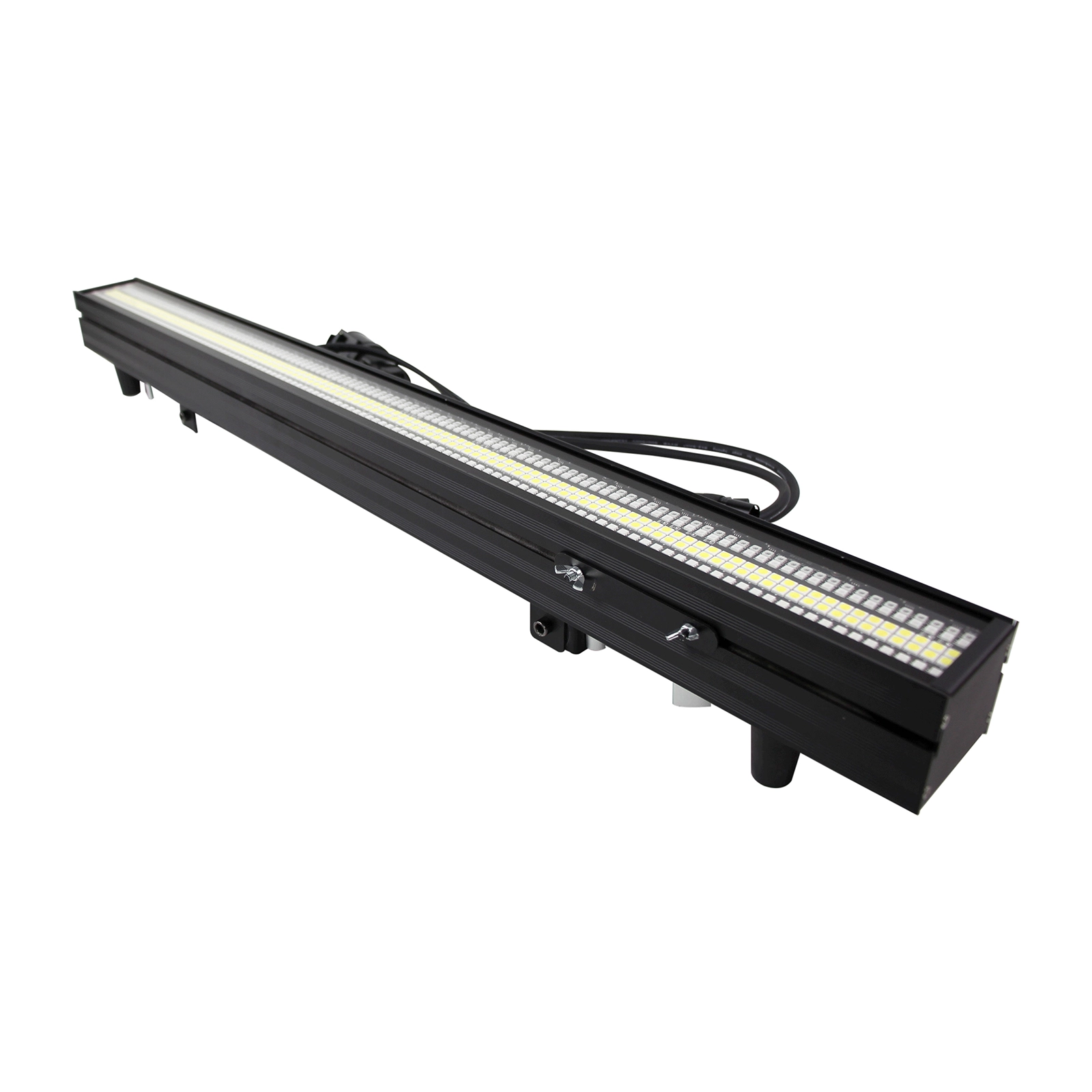

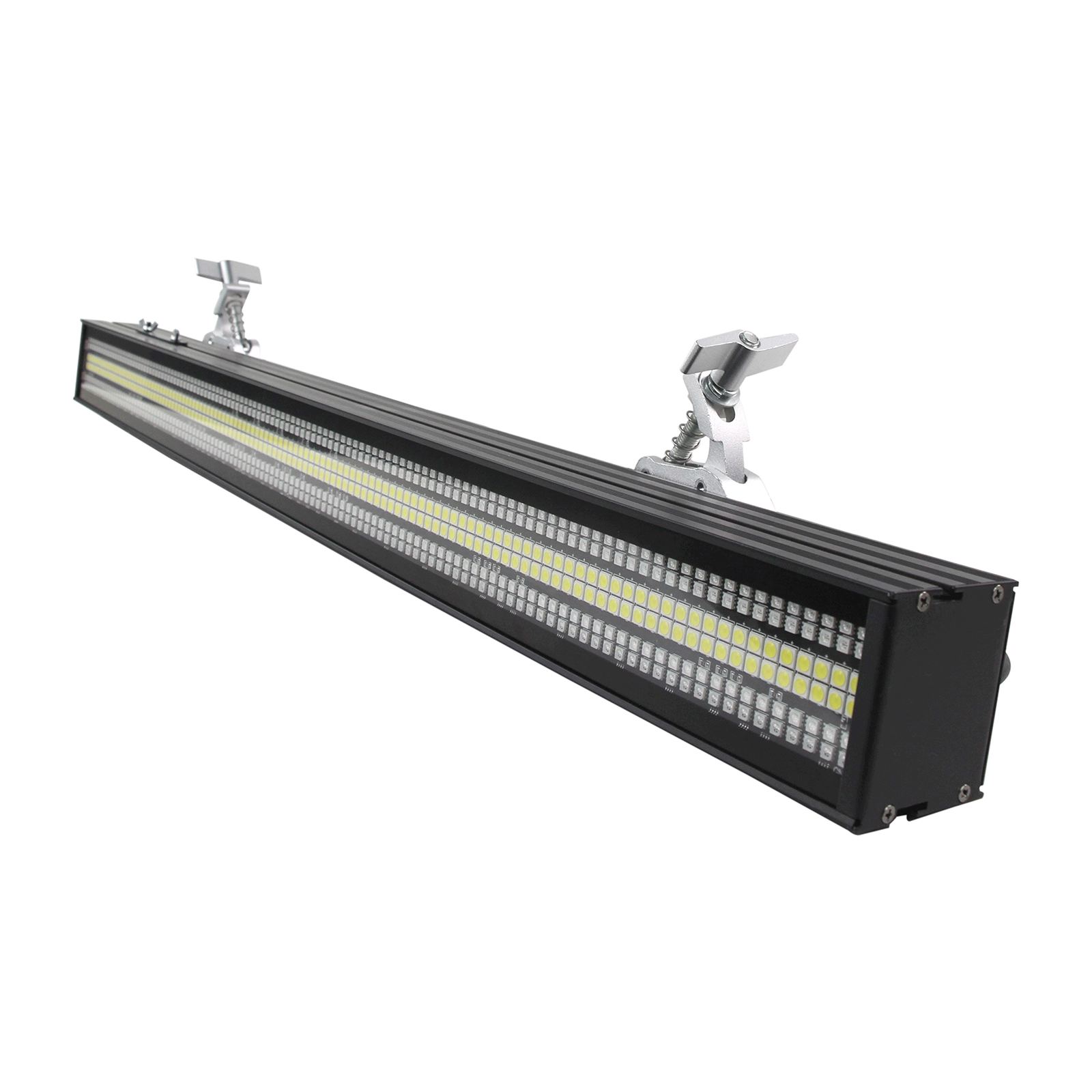

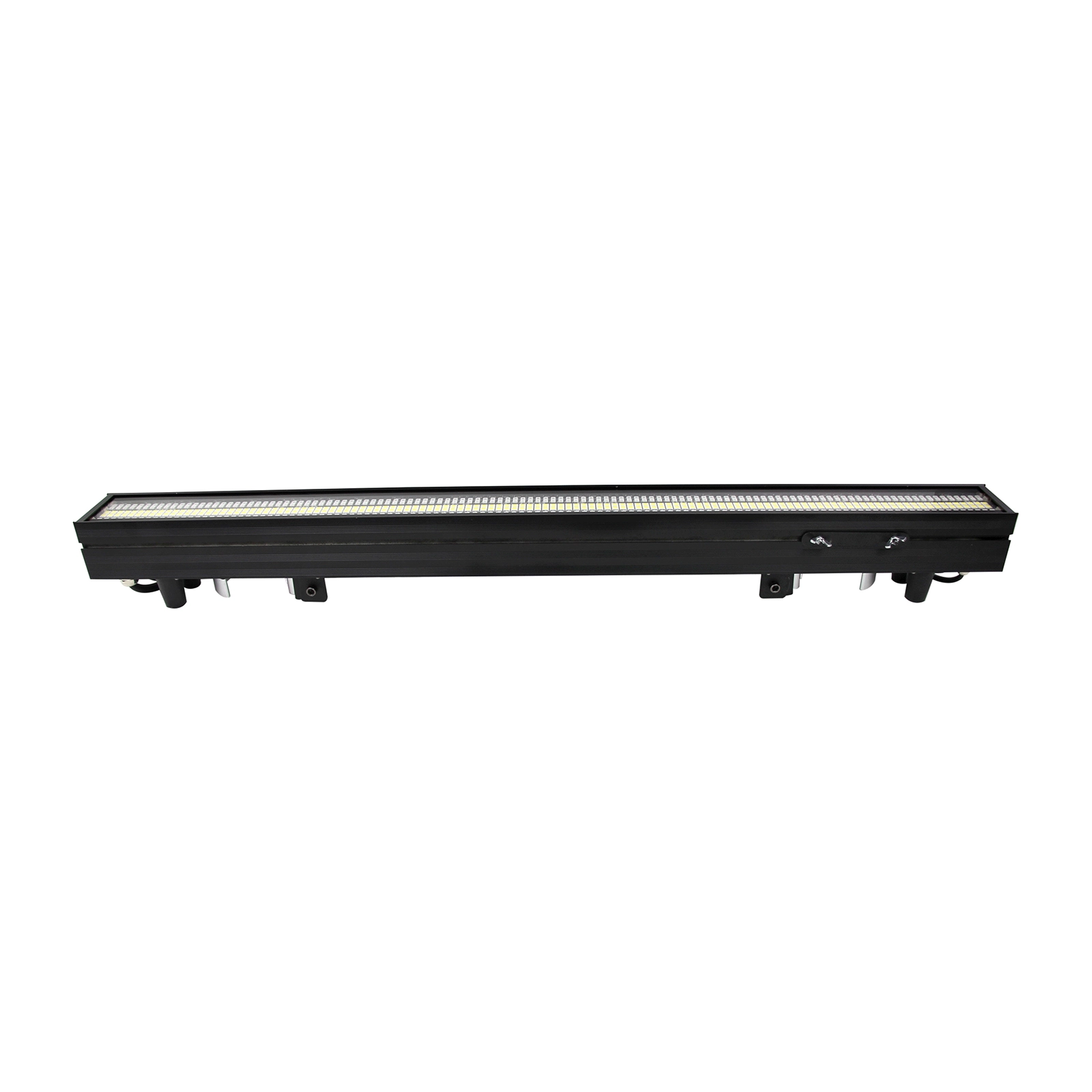

VSHOW Strobe Led Lights S720 2405W 7575 4800.3W RGB16bit 0~100% Linear Dimming

The appearance is simple and atmospheric,with one thicker profile, good heat dissipation effect, no fan, and a good solution to noise and noise problems. The lamp beads are composed of 240 5W main white lights in the middle and 480 0.3W RGB lamp beads on both sides, which can be independent.

Brand Name

VSHOW

Place of Original

Guangdong,China

Control Mode

DMX512, self-propelled, master-slave, voice control, RDM

Voltage

AC100~240V 50/60HZ

LED

240pcs 5W 7575 480pcs 0.3W RGB

Strobe

1~30HZ

Features

Happy running water + flashing

Pixel distribution

48-segment RGB+24-segment main white light

Channels

CH4, CH13, CH36, CH96, CH105, CH168

Dimming

16bit 0~100% linear dimming

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

Control, the main white light has high brightness and good flash effect, which can reach 1-30HZ.

The built-in effects are rich and diverse, convenient and simple and can be directly called. The pixel distribution of the lamp beads can be independently controlled in 24 or 48 sections, 16Bit dimming, with RDM function, The power cord signal adopts 2.5 square 3 meters of water-proof power cords and 3 meters of shielded signal lines, which is convenient for serial use.

The software can monitor the temperature of the lamp beads in real time and prolong the service life of the lamps

Parameters

Voltage	AC100~240V 50/60HZ	LED beads	240pcs 5W 7575 480pcs 0.3W RGB	Pixel distribution	48-segment RGB+24-segment main white light
Channels	CH4, CH13, CH36, CH96, CH105, CH168	Control mode	DMX512, self-propelled, master-slave, voice control, RDM	Dimming	16bit 0~100% linear dimming
Features	Happy running water + flashing+Wash	Strobe frequency	1~30HZ

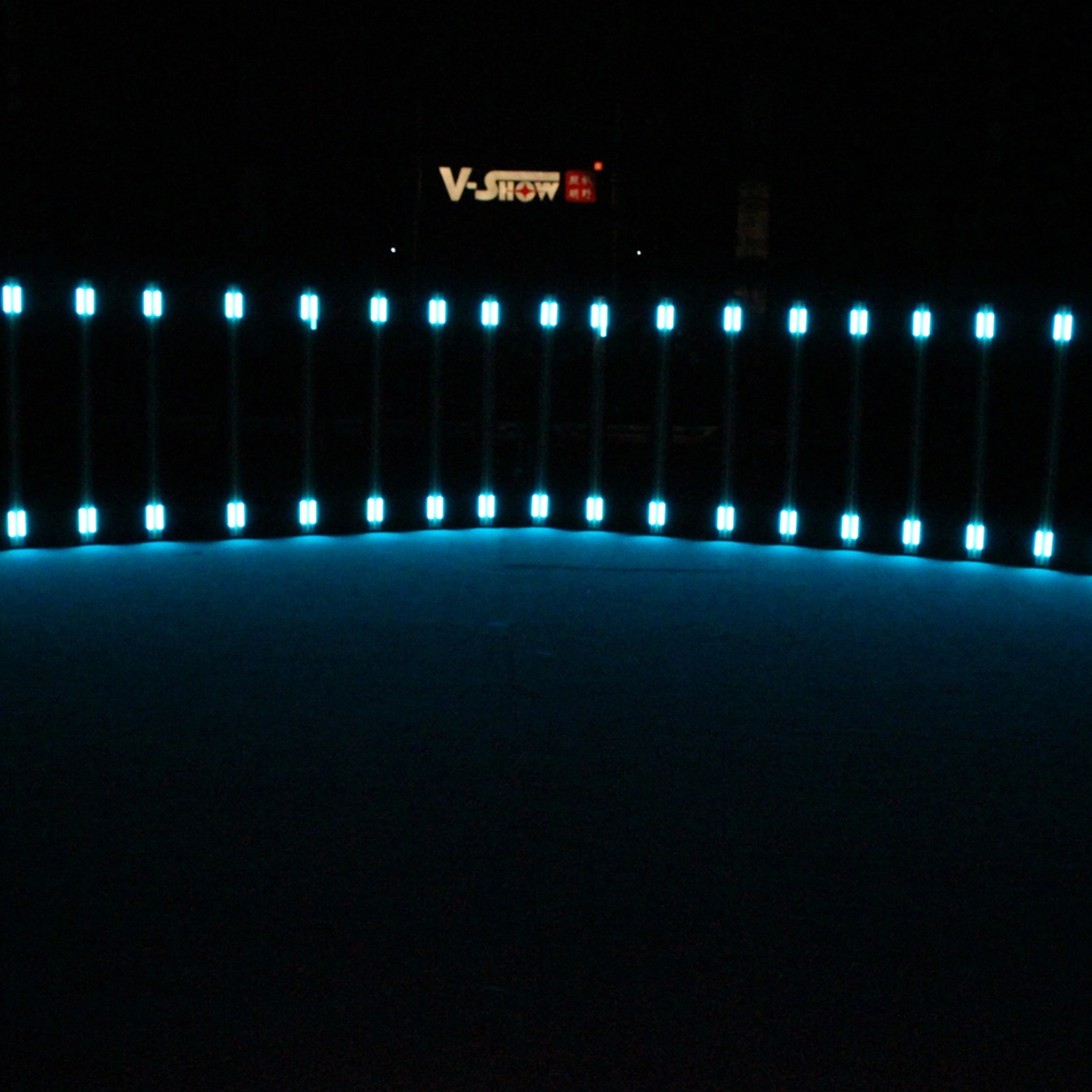

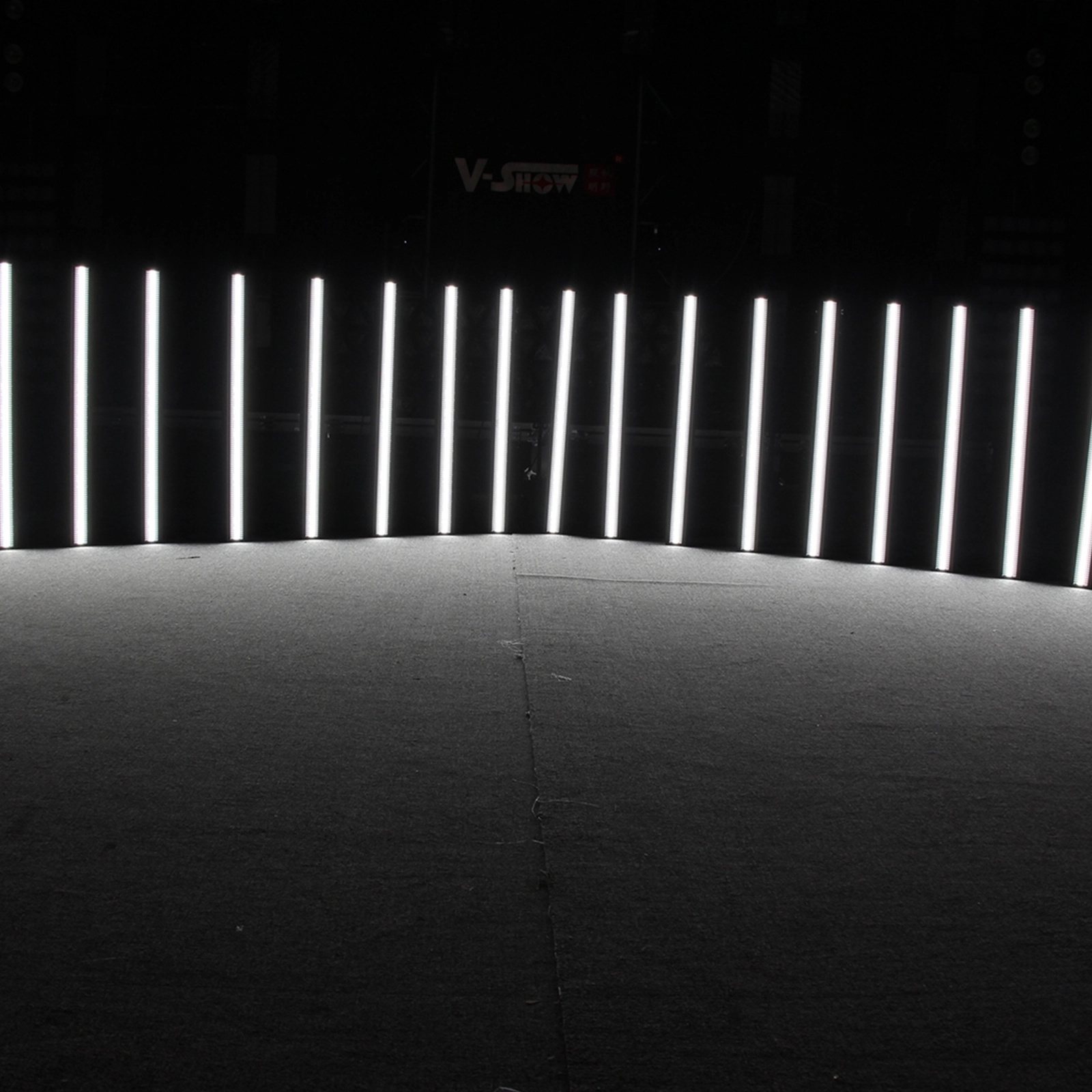

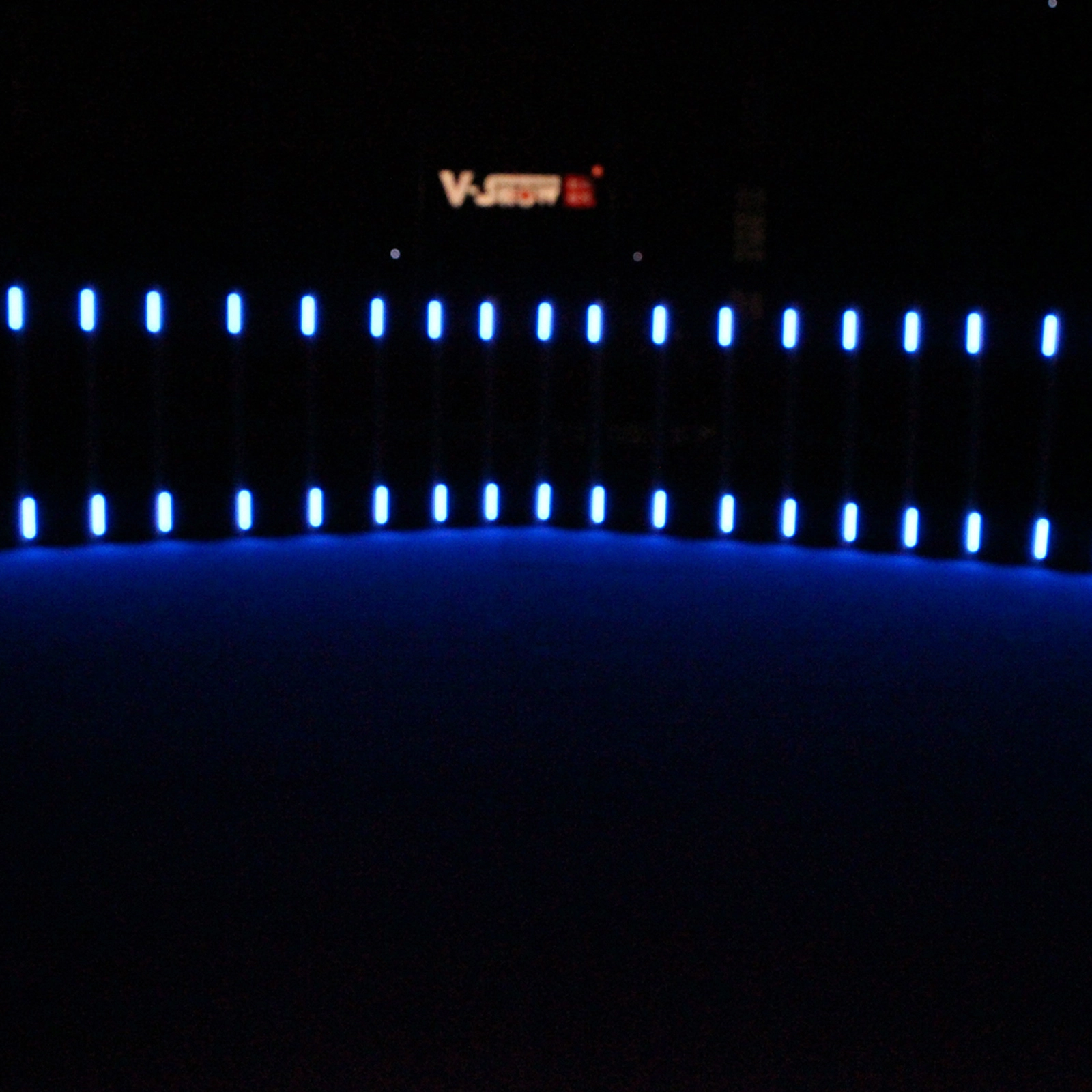

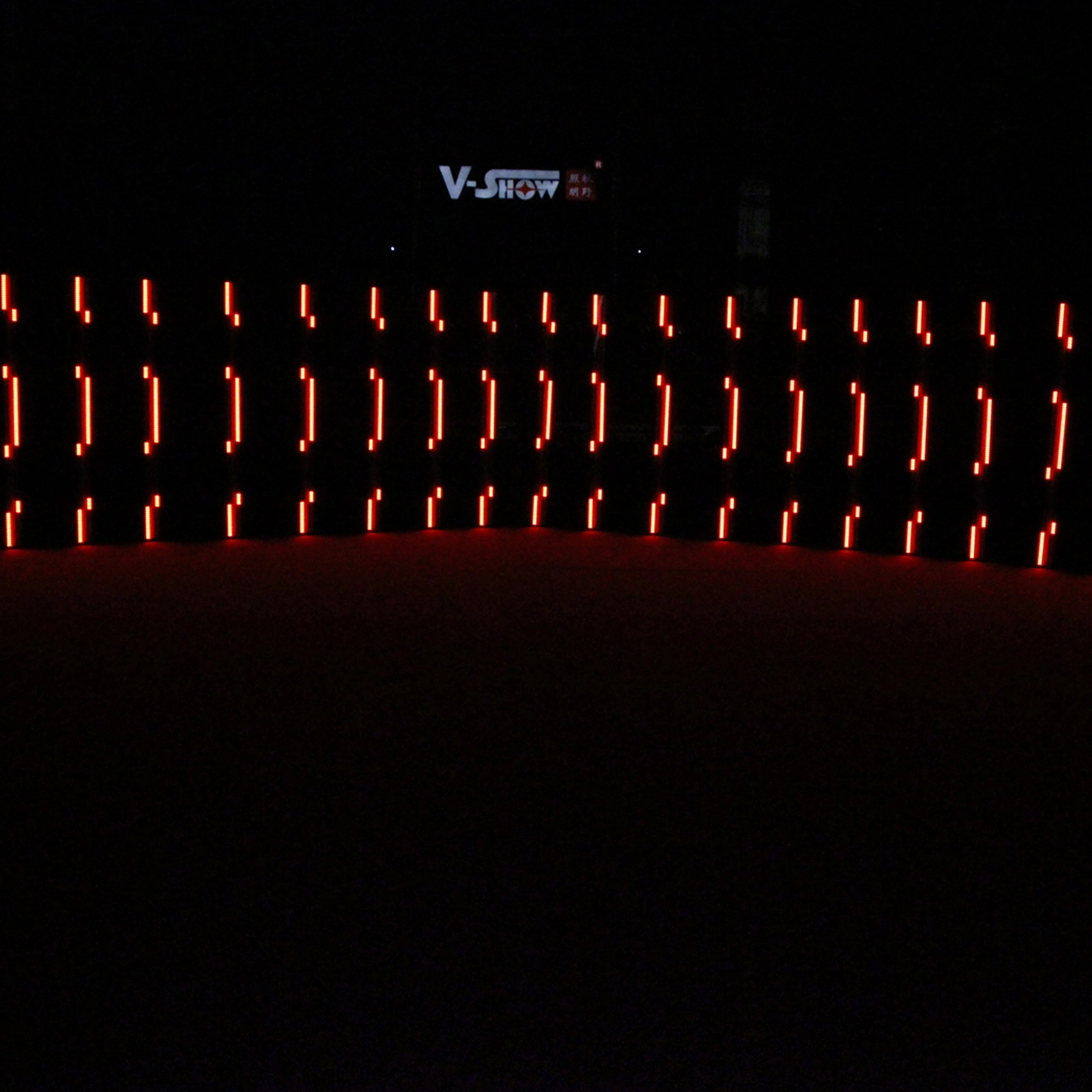

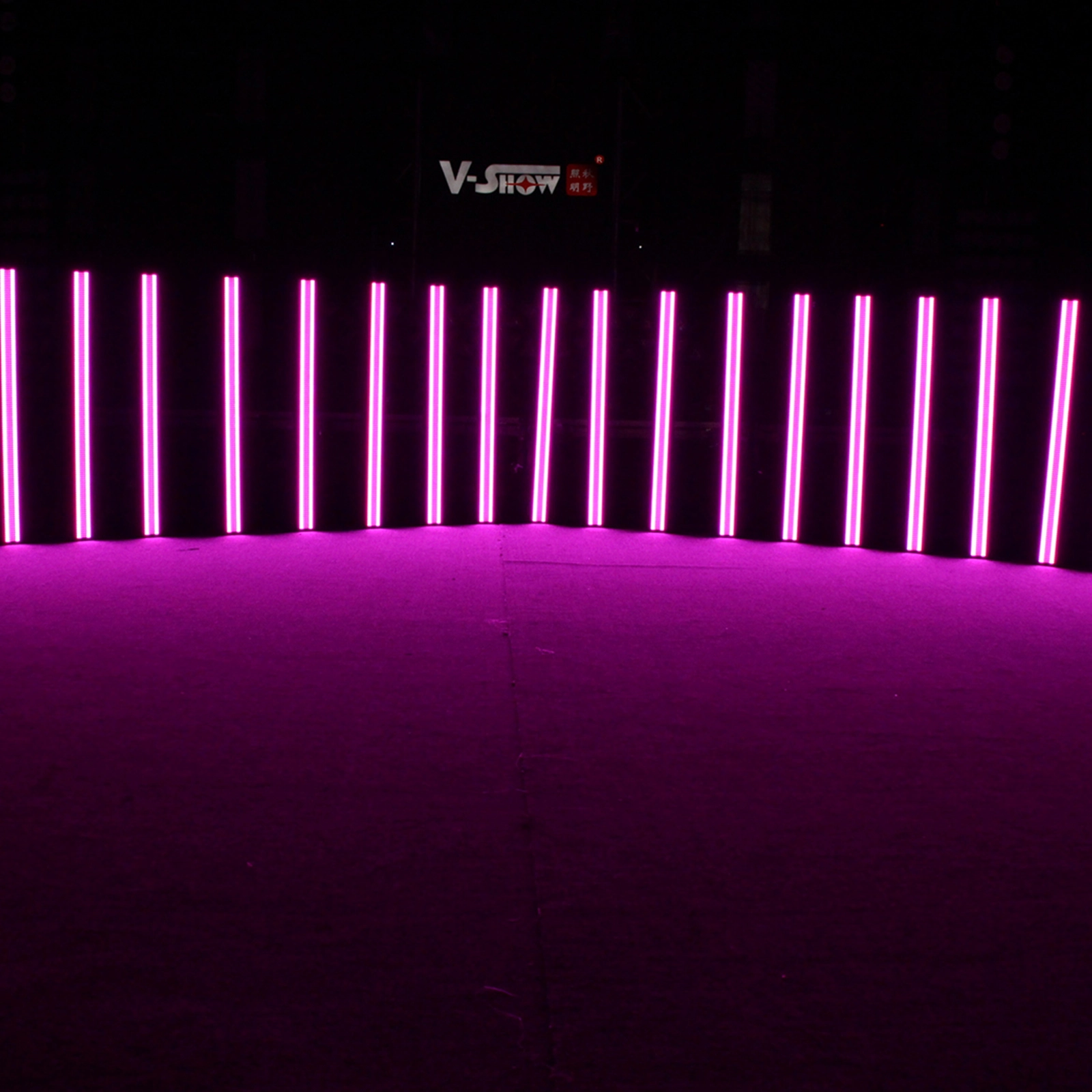

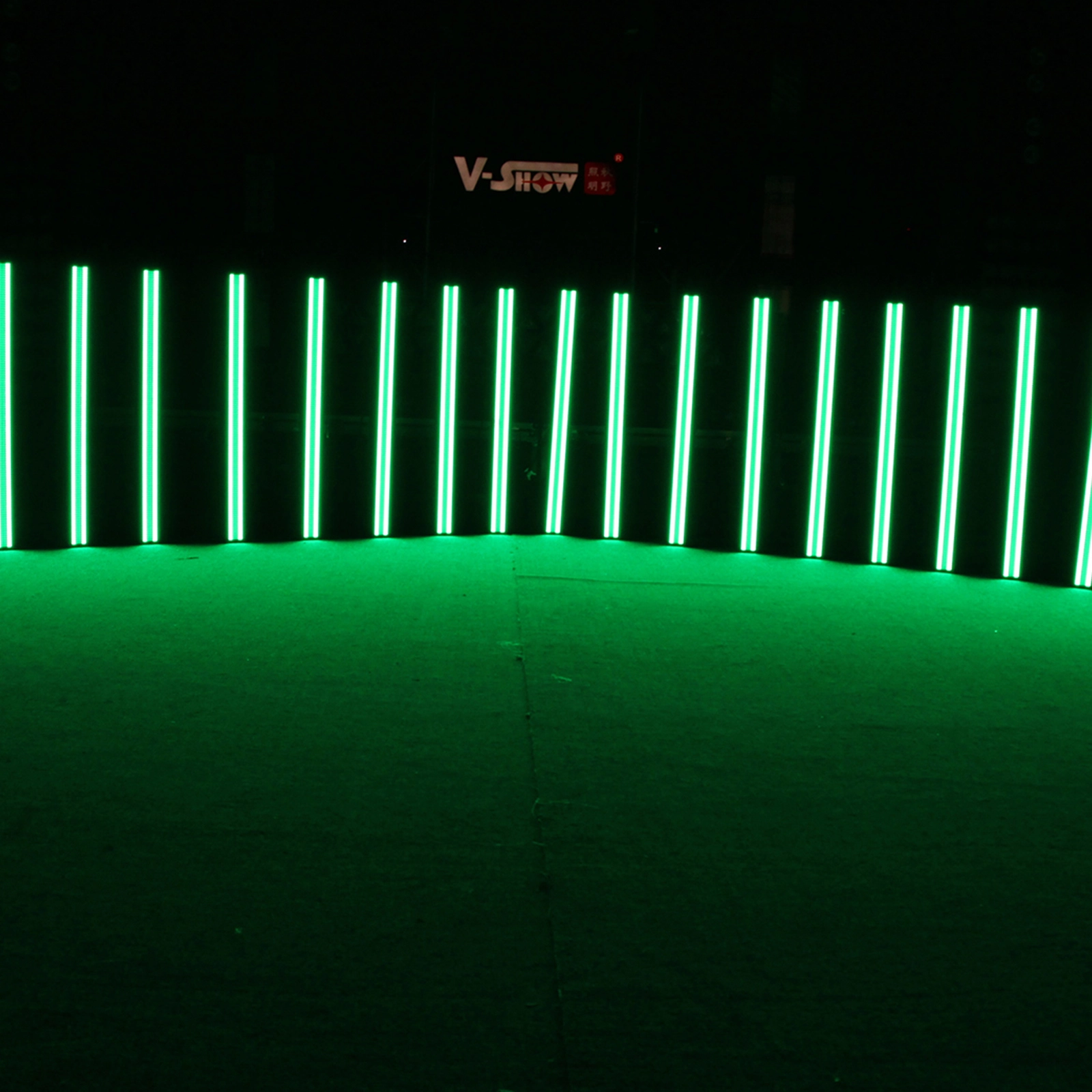

240 5W LED beads and 480 0.3W RGB LED beads are independently controlled in sections

Details & Features

Lighting for small stage

Concert stage lighting

Led stage lighting for churches

Pro sound stage lighting

Stage lighting bar

Stage lighting fixtures

Stage spot lighting

Sage up lighting

Excellent color mixing effect

Stage lighting for churches

Stage equipment & lighting

Pro stage lighting

Stage lighting bar

Stage spot lighting

Stage lighting bar

Pro stage lighting

Stage lighting dmx
